Amber600-16GE8GX4TX-HI3Q

Amber600-16GE8GX4TX-HI3Q is a managed industrial-grade Layer 3+ 10G fiber Ethernet switch independently developed by our company. It features 4 10G optical ports, 8 gigabit optical ports, and 16 gigabit electrical ports, supporting 4 100/1000/10G SFP/SFP+ optical ports + 8 100/1000 Base-X SFP optical ports + 16 10/100/1000 Base-T auto-negotiation RJ45 ports.

Fully complying with industrial product design and material standards, it adopts a 19-inch rack-mountable enclosure design. With technologies like wide-range operating temperature, dual-power redundancy (DC37-75V/AC100-240V), it delivers excellent industrial-grade qualities such as high/low temperature resistance and lightning protection.It supports powerful management functions, including system management, comprehensive Layer 2 management, Layer 3 routing management, QOS queue management, full network security management, and monitoring & maintenance management.

Equipped with industrial-grade Level 3 ESD protection, it suits various scenarios like intelligent transportation, outdoor surveillance, industrial networks, safe cities, and deployments in other harsh environments. Featuring fanless design, low power consumption, and industrial-grade construction, it operates in a temperature range of -40℃ to 85℃, meeting diverse industrial field requirements and providing a cost-effective solution.

This device finds extensive applications in smart buildings, smart cities, smart communities, intelligent transportation, telecommunications, security, financial securities, customs, maritime transport, power, water conservancy, oil fields, and other broadband data transmission fields.

Technical

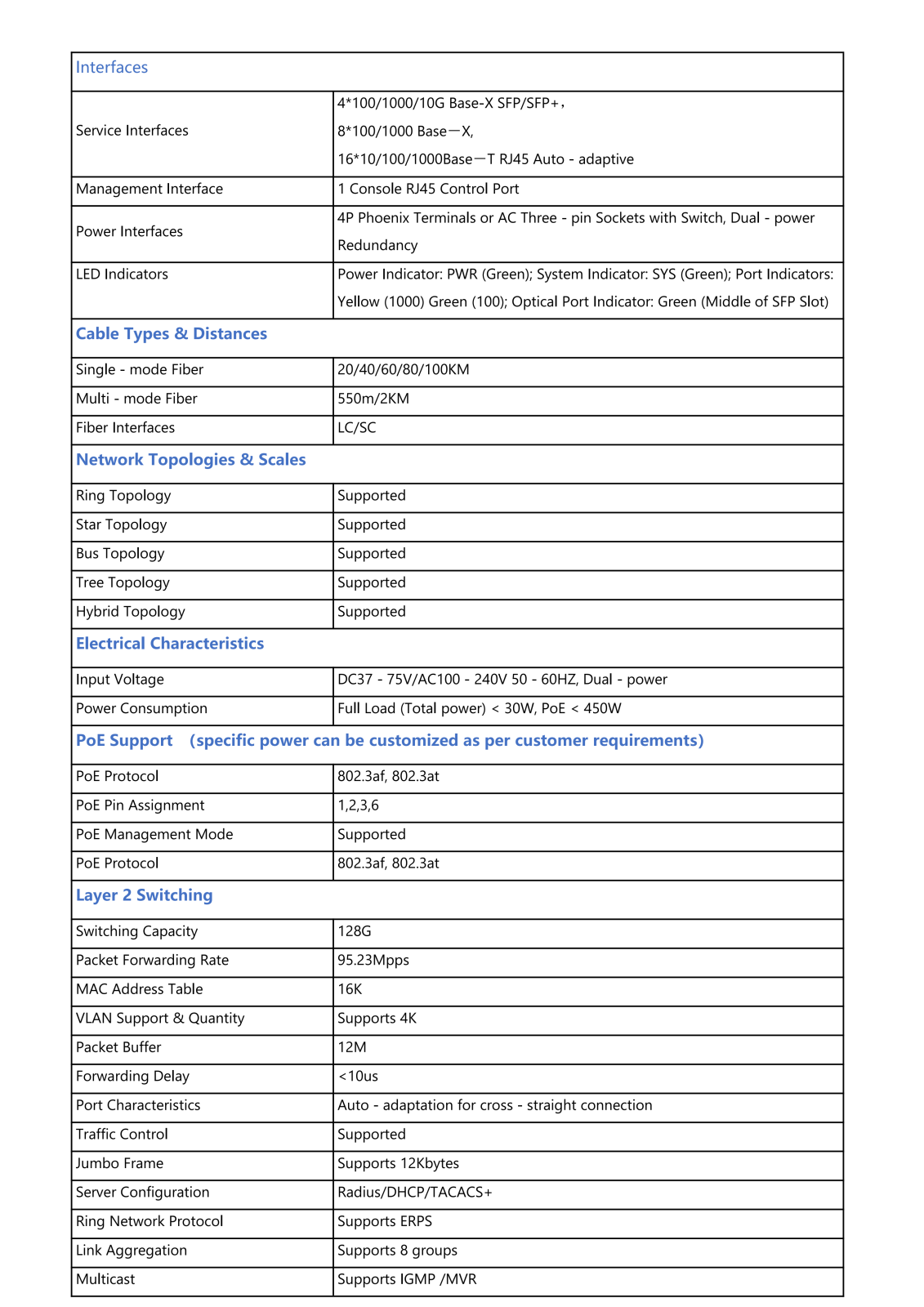

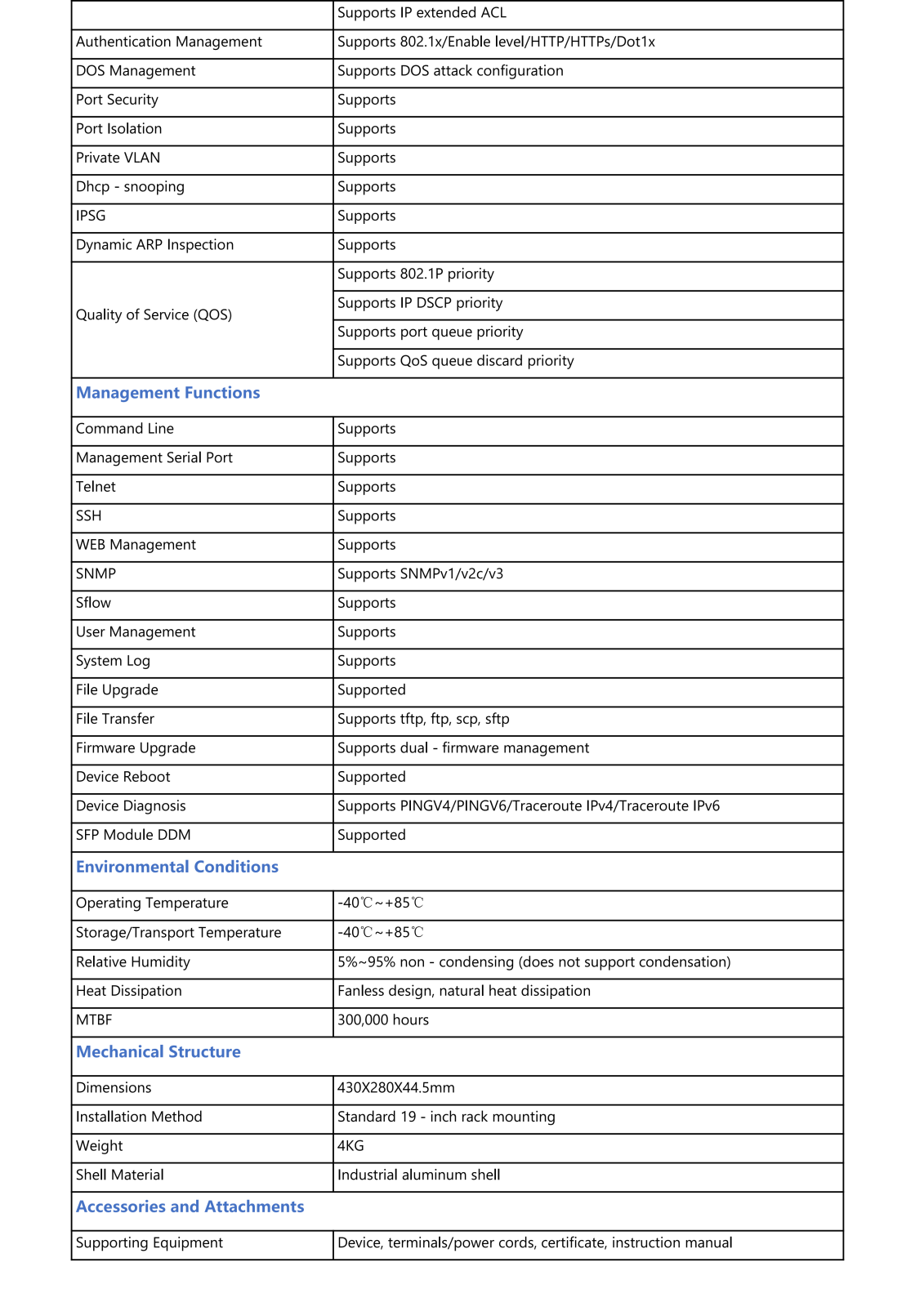

文字文稿1(1)_01.png 文字文稿1(1)_03.png

Model

lSupports diverse management and maintenance methods:WEB/HTTP/HTTPS/SSH/Telnet/SNMP/CLI/CONSOLE/ROM.

lSupports IPv4/IPv6 network management interfaces and network neighbor layer management.

lSupport DHCP Server, DHCP L2/L3 Relay Agent, DHCPv6 Service

lSupport DNS Host & Client Configuration Management.

lSupport SNMP v1/v2c/v3 & Trap Message Configuration Management.

lSupport LLDP, LLDP-MED, and ISDP Configuration Management.

lSupport Switch Scheduled Plan Management.

lSupport Port Mode, Bandwidth Rate Limiting, Speed Control, Traffic Control, and Port Status Dashboard Display.

lSupport 8 Groups of Static & Dynamic LACP Aggregation.

lSupport Unicast/Multicast/Broadcast Storm Suppression.

lSupport STP/RSTP/MSTP Spanning Tree Protocols, ERPS Ring Protection Protocol, and CST/MST Configuration for Layer 2 Loop Elimination & Link Redundancy.

lSupport Port VLAN, IEEE 802.1Q VLAN, Voice VLAN, and Double-Tagged QinQ VLAN Configuration.

lSupport MAC Address Aging & Static MAC Address Configuration.

lSupport IGMP, MVR Multicast Protocols, and IGMP Snooping/MLD Snooping for HD Video Surveillance & Video Conference Access.

lSupport Auto-VoIP & UDLD Port Configuration.

lSupport IP Routing & Layer 3 Port Routing Management.

lSupport ARP/RIP/OSPF/OSPFv3/BGP/Router Discovery/VRRP/Route-Map/BFD/IGMP/PIM Layer 3 Routing.

lSupport QOS 802.1P, IP DSCP Priority, and Port Queue Management.

lSupport DiffServ QoS Management, including Class View, Policy View, and IPv6 Class View.

lSupport Radius/TACACS+ Server, 802.1x/Enable Level/HTTP/HTTPS/Dot1x Authentication.

lSupport Anti-DOS Attack Configuration Management.

lSupport Port Access Security Management Configuration and Status Query.

lSupport Port IP Security Management Based on IGMP Snooping/IPSG/Dynamic ARP Inspection.

lSupport ACL Management with IPv4/IPv6/MAC Binding.

lSupport System Log/Port Statistics/Port Connection/Port Cable Testing/SFP Transceiver Info/EAP Packet Monitoring Management.

lSupport Switch Reboot/Reset/Firmware Upgrade/Configuration Import & Export/IMG Dual - Firmware Management/IP Diagnosis/Chinese - English Software Switch.

lSupport Switch Hardware Module/CPU Temperature & System Occupancy Check, Software Function Setting, and SNTP Time Setting.

lCheck device status via Power Indicator (PWR), System Running Indicator (SYS), and Port Status Indicators (Link, L/A).
