Amber600-CMS03-P2-24GE24GX16TX-BC3Q

VAD’s Amber600-CMS03-P2-24GE24GX16TX-BC3Q is a Layer 3 managed Ethernet switch meticulously designed for communication needs. It provides 241000M electrical ports, 241000M optical ports, and 16*10G optical ports. Positioned at the network core layer, the switch is widely applicable in fields like power automation control, intelligent transportation, expressways, and rail transit.

The industrial IP40 - rated metal casing, robust rack - mount structure, and Ethernet port surge protection of up to 6KV ensure reliable operation in harsh working environments.

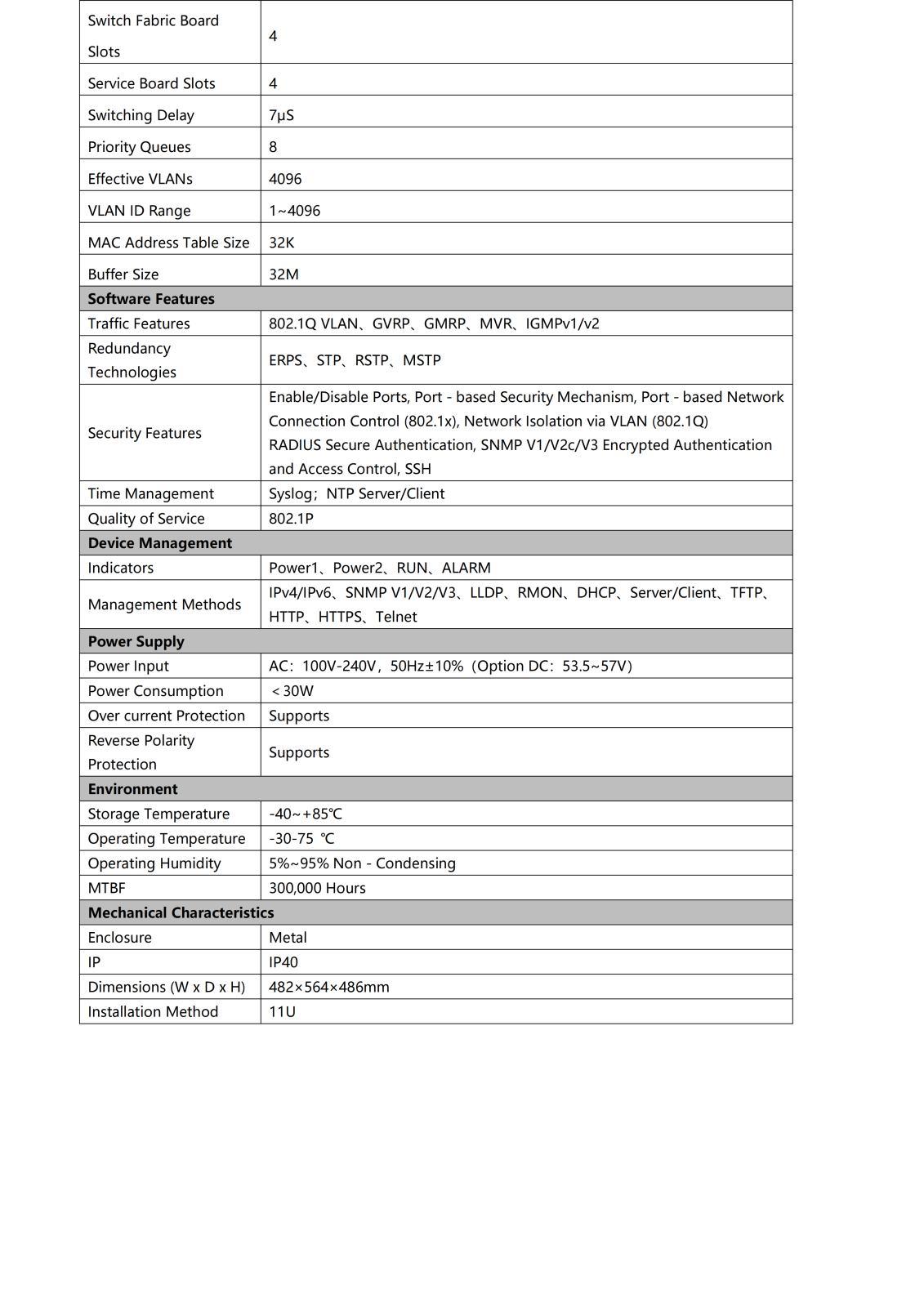

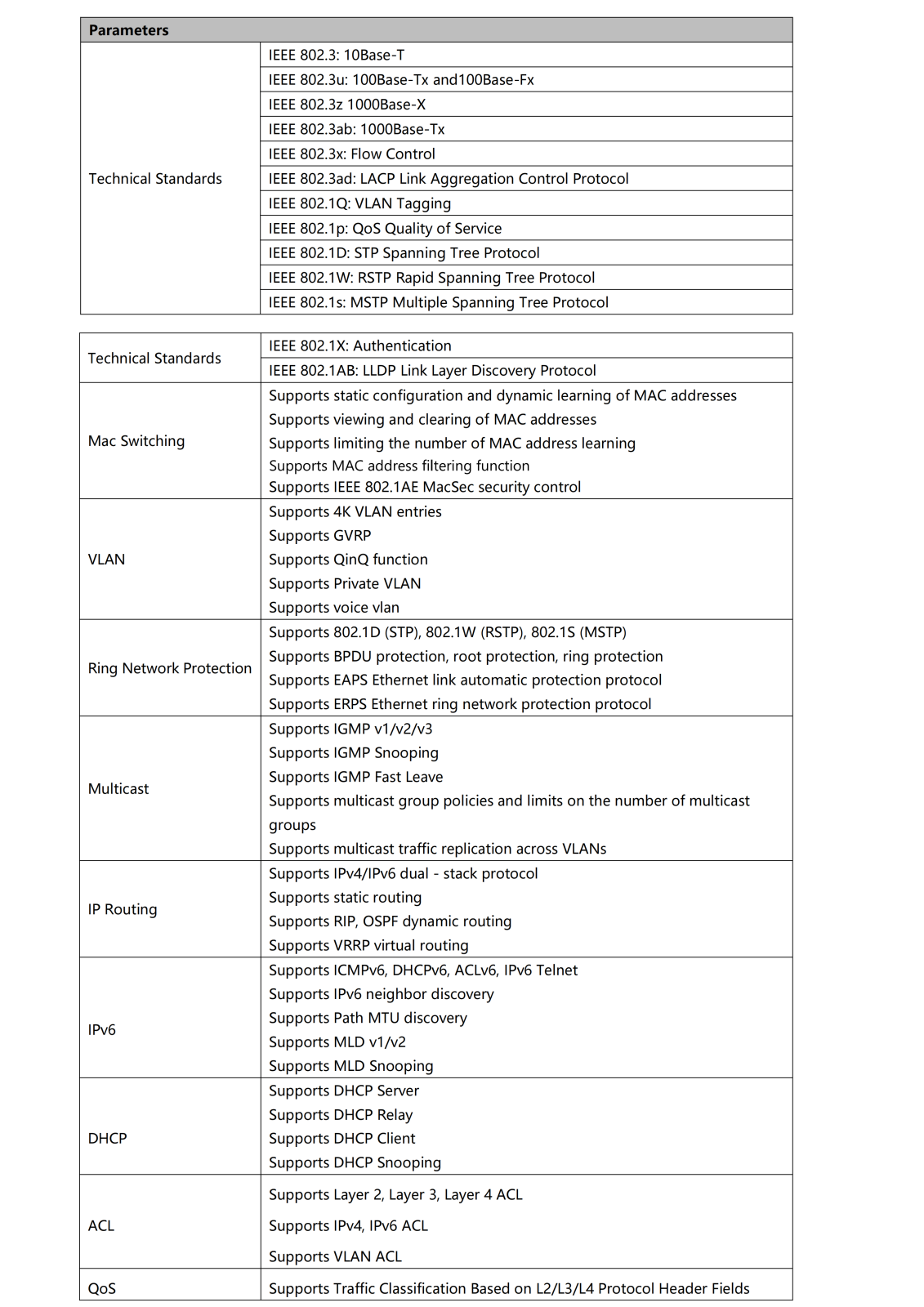

Technical


Model

lOperating temperature range:-30~75°C

l6KV Ethernet port surge protection

lEthernet port locking to prevent unauthorized MAc access

lStandard rack-mount installation

lSupports routing functions

lSupports ITU -TG 8032 ERPS protocol, typical self - healing time <20ms

lSupports SNMP V1/2/3 for secure network management

lSupports lGMP V1/V2/3 for multicast management

lSupports Web, Telnet, Console, SSH for configuration management

lFully supports the lPv6 protocol suite
