Amber600-24GE4TX-HI3R

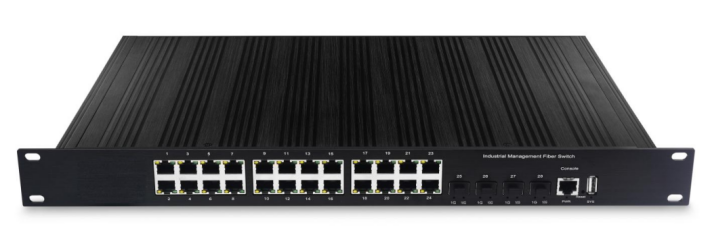

This series is a managed industrial - grade strong Layer 3 10G optical fiber Ethernet switch independently developed by our company. It has 4 10G optical ports and 24 Gigabit electrical ports, supporting 4 100/1000/10G SFP/SFP+ optical ports + 24 10/100/1000 Base - T adaptive RJ45 ports.

The 4 10G optical and 24 Gigabit electrical configuration fully follows industrial product design and material selection. The shell adopts a 19 - inch rack design. With technologies such as a wide - range operating ambient temperature, DC37 - 75V/AC100 - 240V dual - power redundancy, it provides excellent industrial - grade quality such as high/low temperature resistance and lightning protection. It supports powerful management functions, including system management, comprehensive Layer 2 management functions, Layer 3 routing management, QOS queue management, comprehensive network security management, and monitoring and maintenance management.

The industrial - grade ESD protection makes it suitable for various occasions, such as intelligent transportation, outdoor monitoring, industrial networks, safe cities, and deployment requirements in other harsh environments. The product also adopts fanless, low - power - consumption, and industrial - grade design, with an operating temperature range of - 40 to 85°C, which can meet the requirements of various industrial sites and provide an economical solution.

This device can be widely applied to various broadband data transmission fields such as intelligent buildings, smart cities, smart communities, intelligent transportation, telecommunications, security, financial securities, customs, shipping, electric power, water conservancy, and oil fields.

Technical

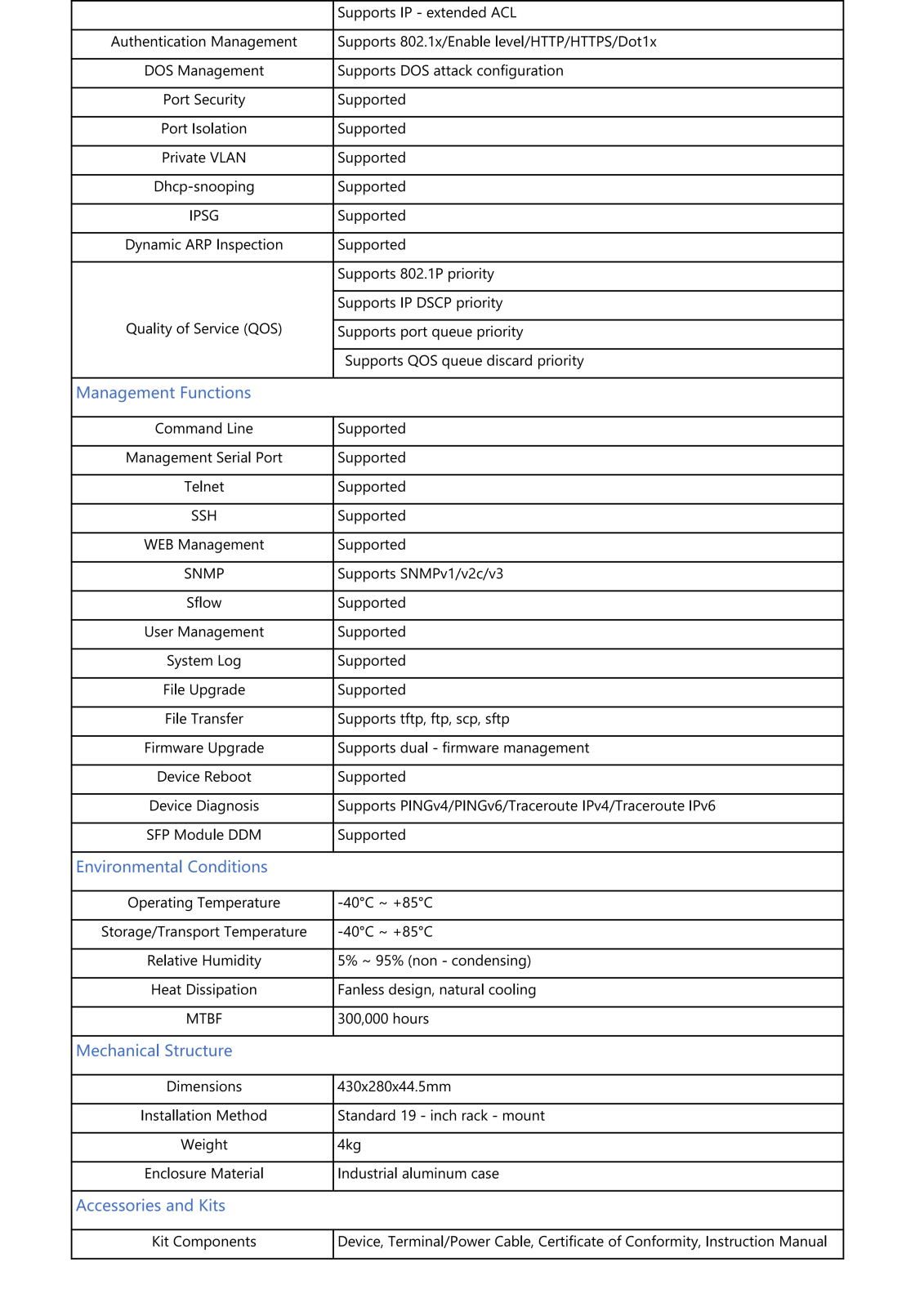

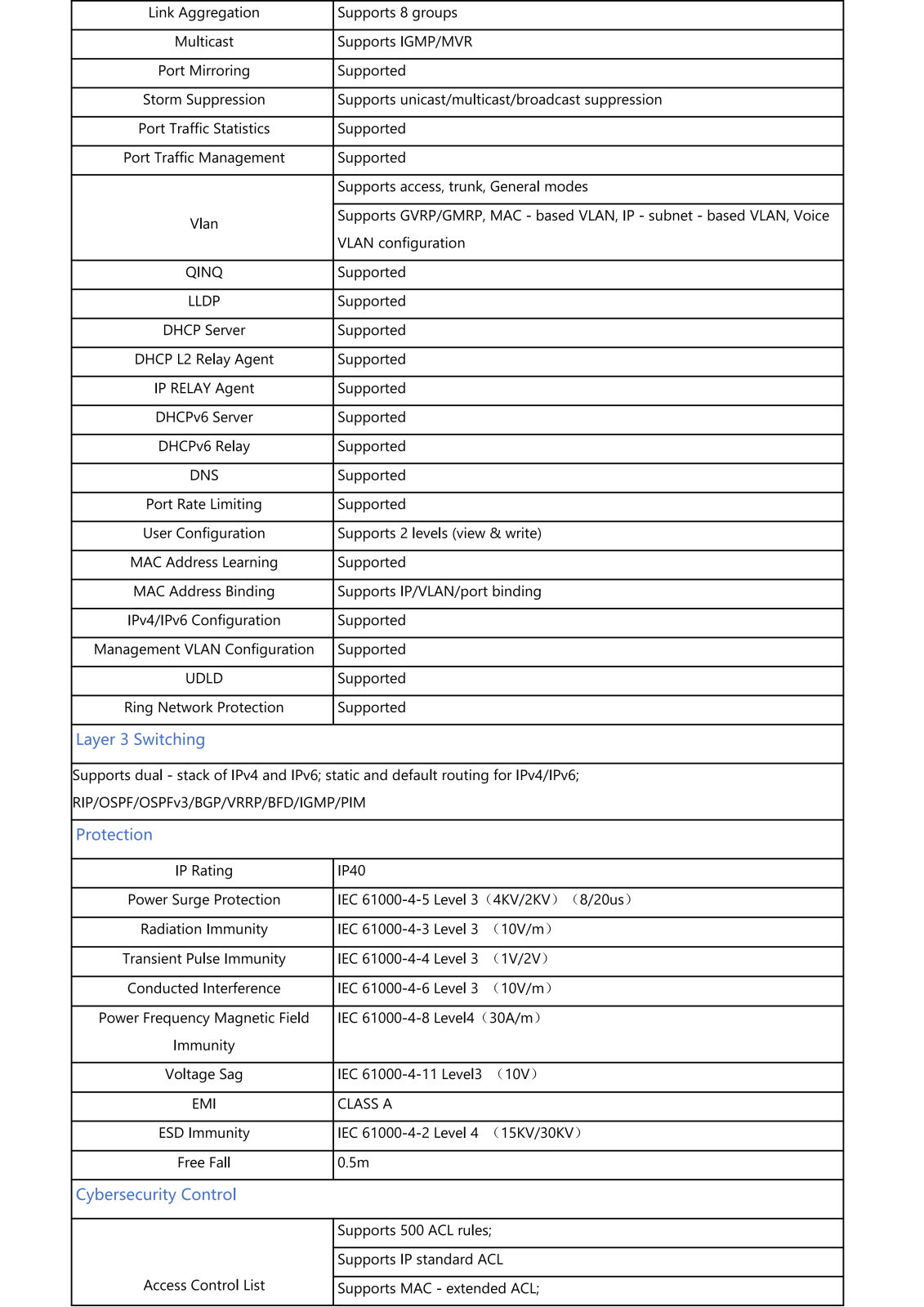

文字文稿2_02.png 文字文稿2_03.png 文字文稿2_01.png

Model

lSupport diverse management and maintenance methods:WEB/HTTP/HTTPS/SSH/Telnet/SNMP/CLI/CONSOLE/ROM.

lSupport IPV4/IPV6 network management interfaces and network neighbor management.

lSupport DHCP Server, DHCP L2/L3 Relay Agent, DHCPv6 Service.

lSupport DNS Host & Client Configuration Management.

lSupport SNMP v1/v2c/v3 & Trap Message Configuration Management.

lSupport LLDP, LLDP-MED, and ISDP Configuration Management.

lSupport Switch Scheduled Plan Management.

lSupport Port Mode, Bandwidth Rate Limiting, Speed Control, Traffic Control, and Port Status Dashboard Display.

lSupport 8 Groups of Static & Dynamic LACP Aggregation.

lSupport Unicast/Multicast/Broadcast Storm Suppression.

lSupport STP/RSTP/MSTP Spanning Tree Protocols, ERPS Ring Protection Protocol, and CST/MST Configuration for Layer 2 Loop Elimination & Link Redundancy.

lSupport Port VLAN, IEEE 802.1Q VLAN, Voice VLAN, and Double-Tagged QinQ VLAN Configuration.

lSupport MAC Address Aging & Static MAC Address Configuration.

lSupport IGMP, MVR Multicast Protocols, and IGMP Snooping/MLD Snooping for HD Video Surveillance & Video Conference Access.

lSupport Auto-VoIP & UDLD Port Configuration.

lSupport IP Routing & Layer 3 Port Routing Management.

lSupport ARP/RIP/OSPF/OSPFv3/BGP/Router Discovery/VRRP/Route-Map/BFD/IGMP/PIM Layer 3 Routing.

lSupport QOS 802.1P, IP DSCP Priority, and Port Queue Management.

lSupport DiffServ QoS Management, including Class View, Policy View, and IPv6 Class View.

lSupport Radius/TACACS+ Server, 802.1x/Enable Level/HTTP/HTTPS/Dot1x Authentication.

lSupport Anti-DOS Attack Configuration Management.

lSupport Port Access Security Management Configuration and Status Query.

lSupport Port IP Security Management Based on IGMP Snooping/IPSG/Dynamic ARP Inspection.

lSupport ACL Management with IPv4/IPv6/MAC Binding.

lSupport System Log/Port Statistics/Port Connection/Port Cable Testing/SFP Transceiver Info/EAP Packet Monitoring Management.

lSupport Switch Reboot/Reset/Firmware Upgrade/Configuration Import & Export/IMG Dual - Firmware Management/IP Diagnosis/Chinese - English Software Switch.

lSupport Switch Hardware Module/CPU Temperature & System Occupancy Check, Software Function Setting, and SNTP Time Setting.

lCheck device status via Power Indicator (PWR), System Running Indicator (SYS), and Port Status Indicators (Link, L/A).
