Standards

IEEE 802.3: 10Base-T

IEEE 802.3u: 100Base-Tx/100Base-Fx

IEEE 802.3x: Traffic control

IEEE 802.3ad: LACP

IEEE 802.1Q: VLAN;

IEEE 802.1p: QoS

IEEE 802.1D: STP

IEEE 802.1W: RSTP

IEEE 802.1s: MSTP

IEEE 802.1X: Security of authentication

IEEE 802.1AB: LLDP

Port

Ethernet port

8*10/100Base-T M12 female plug

4*10/100/1000Base-T M12 female plug

Control port

RS-232 control cable. M12-5(Male plug) connector,115200bps,8,N,1

Alarm

M12-5(Male plug) connector, relay output fault alarm

Switch properties

Backplane bandwidth

24Gbps

Packet forwarding rate

17.8Mpps

Exchange delay

7μS

Priority queue

8

Max.No. of VLAN

4096

VLAN ID range

1 to 4096

MAC table size

8K

Packet buffer size

4M

Ethernet software features

Filter

802.1Q VLAN、GVRP、GMRP、MVR、IGMPv1/v2

Redundancy technology

ERPS、STP、RSTP、MSTP

Safety characteristics

Enable/disable ports, port based network connection control (802.1x)，Through VLAN (802.1Q) network isolation,，RADIUS security authentication，SNMP V1/V2c/V3 encryption verification and access control，SSH

Time management

Syslog；NTP Server/Client

Quality of service

802.1P

Device management

Indicator lights

Power1、Power2、RUN、ALARM

Management mode

IPv4/IPv6、SNMP V1/V2/V3、LLDP、RMON、DHCP、Server/Client、TFTP、HTTP、HTTPS、Telnet

Power

Input voltage range

Dual power supply redundancy, power input 12 to 57VDC

Port type

M23(7/8)(Male plug)  connector

Power consumption

＜18W

Overload current protection

Supported

Reverse polarity protection

Supported

Environment

Storage temperature

-40 to +85℃

Operating temperature

-40 to +75℃

Operating humidity

5% to 95% no-condensing

Physical specification

Housing

Metal

Ingress protection rating

IP42

Dimensions(W x D x H)

250 x 141 x 69mm

Weight

3KG

Mounting options

Wall mounting

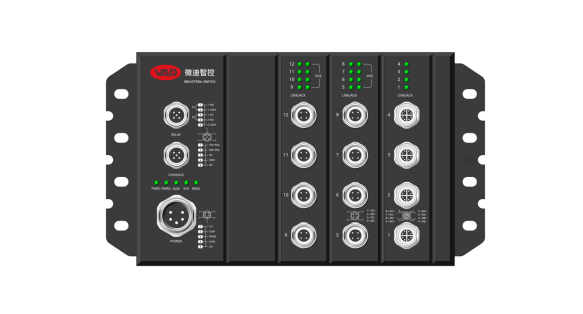

Marble700-8MFE4MGE-EN

 Managed 12-ports industrial Ethernet switch, eight 10/100M 12M Base T ,four10/100/1000M 12M Base T
