Marble200-8MFE-EN

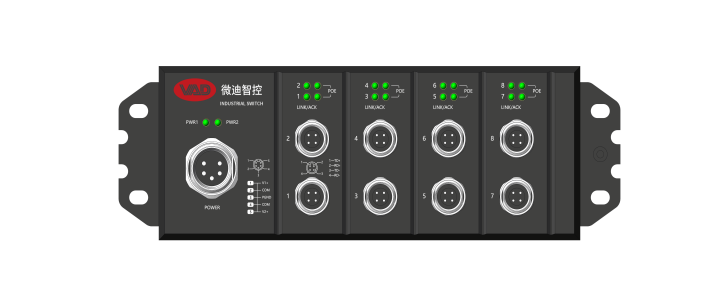

Marble200-8MFE-EN unmanaged layer 2 switch is rugged for hardened industrial applications. Suitable for automation control, intelligent transportation and harsh industrial environments, the switches guarantee high network availability and environmental adaptability.

Technical

Standards
Standards	IEEE 802.3: 10Base-T IEEE 802.3u: 100Base-Tx IEEE 802.3z: 1000Base-X IEEE 802.3x: Traffic control
Port
Ethernet port	8*10/100/1000Base-T M12 female plug
Switch properties
Backplane bandwidth	16Gbps
Exchange delay	7μS
Priority queue	4
MAC table size	1K
Packet buffer size	512K
Device management
Indicator lights	Power1、Power2
Power
Input voltage range	Dual DC input，12 to 57VDC，5-pin
Power consumption	＜10W
Overload current protection	Supported
Reverse polarity protection	Supported
Environment
Storage temperature	-40 to +85℃
Operating temperature	-40 to +75℃
Operating humidity	5% to 95% no-condensing
Physical specification
Housing	Metal
Ingress protection rating	IP42
Dimensions(W x D x H)	250 x 80 x 49.6mm
Weight	<3KG
Mounting options	Wall mounting

Model

Ordering Information
Marble200-8MFE-EN	Wall mounting type unmanaged 8-ports industrial Ethernet switch, eight 10/100M M12 Base T
