VEC11T-EC - VAD industrial communication Technologies Co., Ltd

Introduction

Technical

Model

VEC11T-EC

Product Description

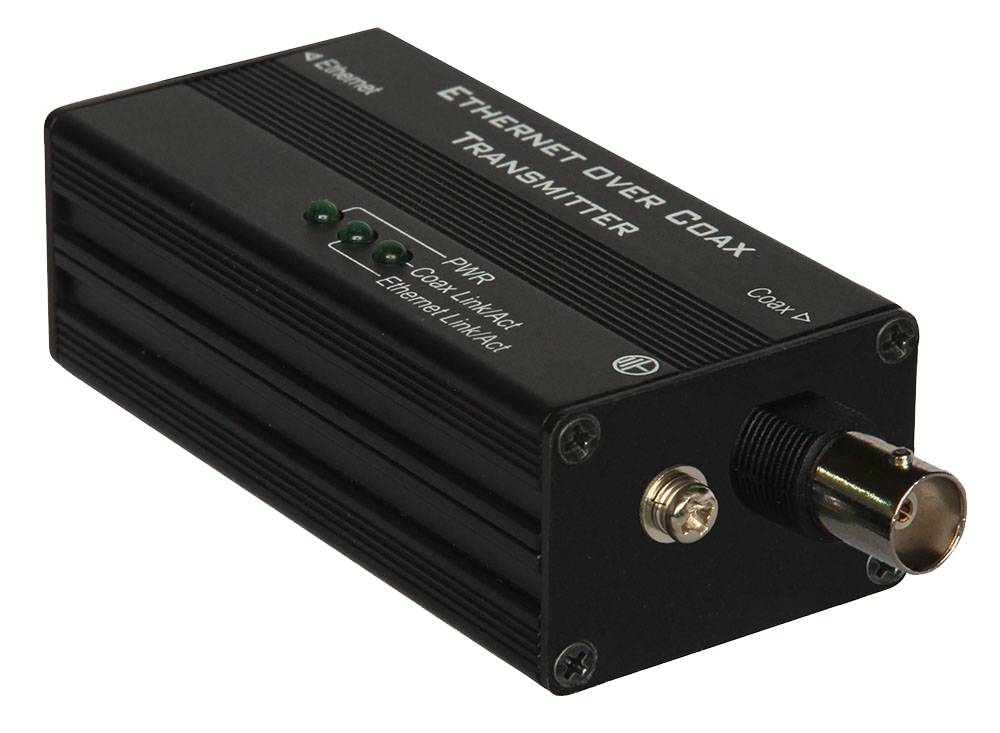

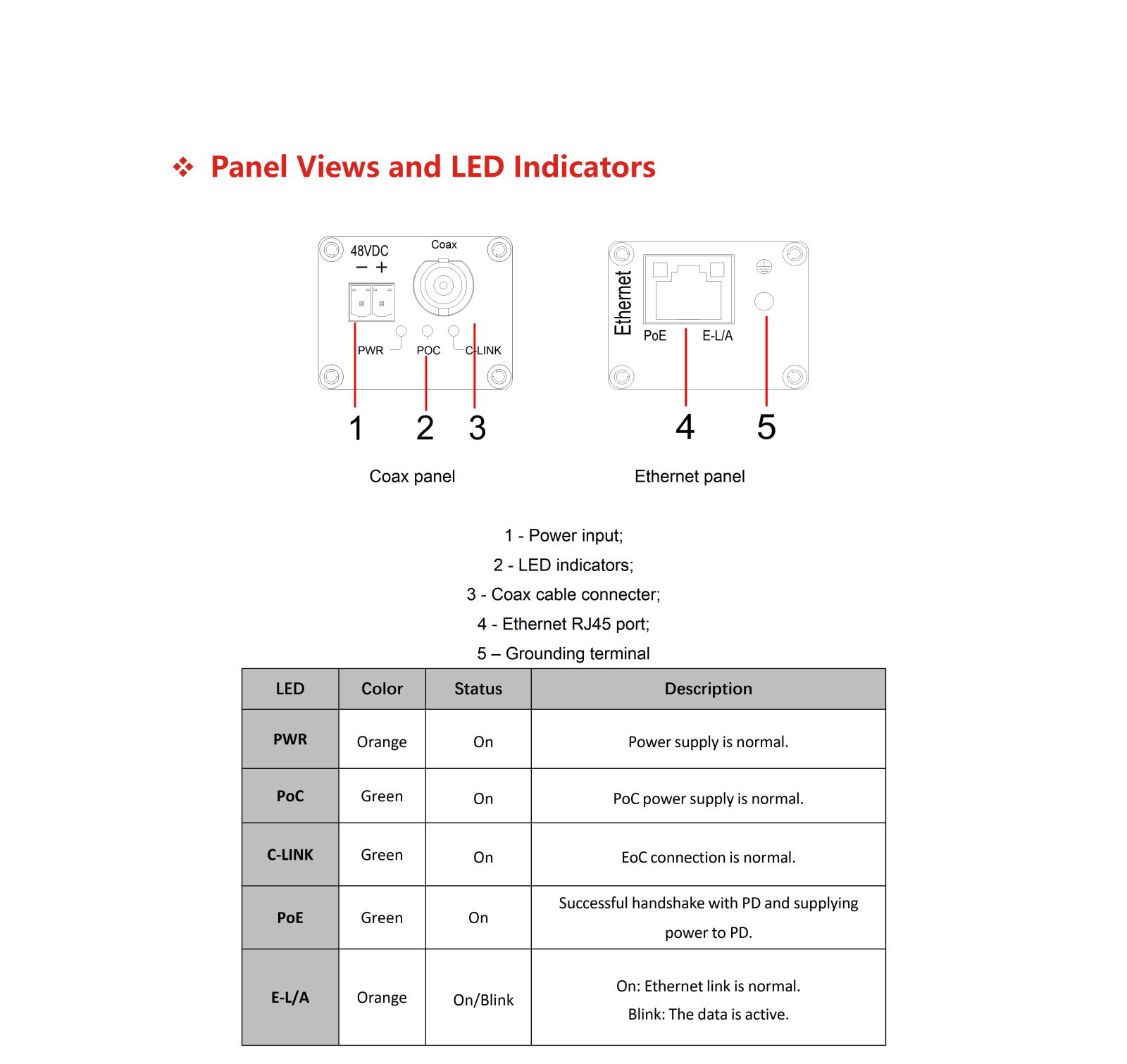

The VAD VEC11T-EC is a three-in-one Ethernet over Coax 1-channel transmitter. This transmitter provides connectivity for 1*10/100Mbps IEEE standard twisted pair copper port over a 75ohm coaxial cable. Power is supplied from one of the headend receivers, VEC116R-PC, VEC18R-PC, or VEC11R-PC Ethernet over Coax switch through the coaxial cable by Power over Coax (PoC) technology. This transmitter provides PoE/PoE+ support with maximum power of 30W. Varying data rates are supported depending on cable distance and quality. The plug-and-play design ensures ease of installation with no electrical adjustment needed. LED indicators are provided to clearly show the operational status of the unit.

VEC11R-PC
VEC116R-PC-500W
