VEC116R-PC-500W - VAD industrial communication Technologies Co., Ltd

Introduction

Technical

Model

VEC116R-PC-500W

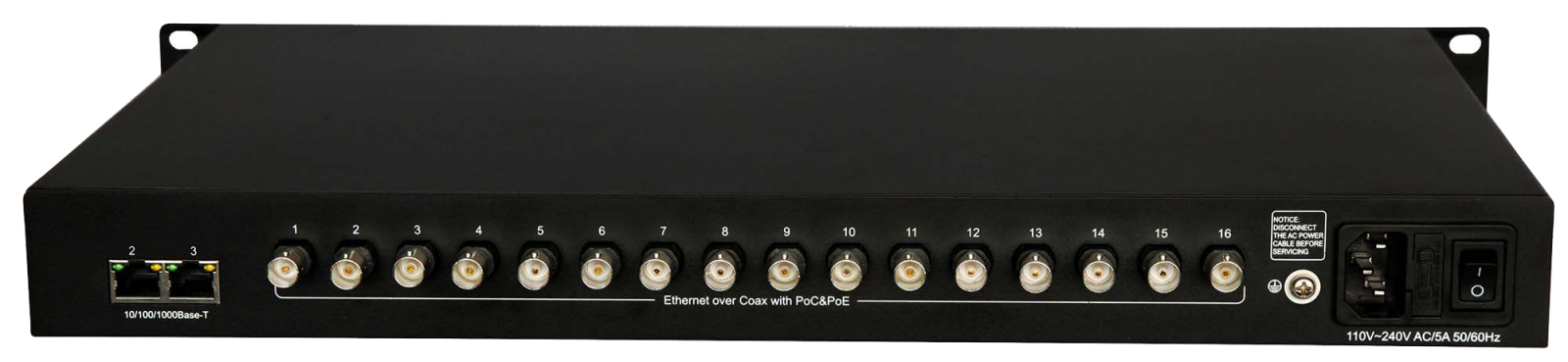

The VAD VEC116R-PC-500W is an Ethernet over Coax (EoC) switch with 16 coax ports with Power over Coax (PoC) and 3*10/100/1000M Ethernet ports. This switch provides connectivity up to 16 units of VEC11T-EC transmitter. Power is supplied to the transmitters through the coaxial cable. Varying data rates are supported depending on cable distance and quality. This product also provides PoC management which allows the operator to remotely switch power on or off to any of the coax channels. Plug-and-play design ensures ease of installation with no electrical adjustment needed. LED indicators are provided to show the operational status of the unit clearly.

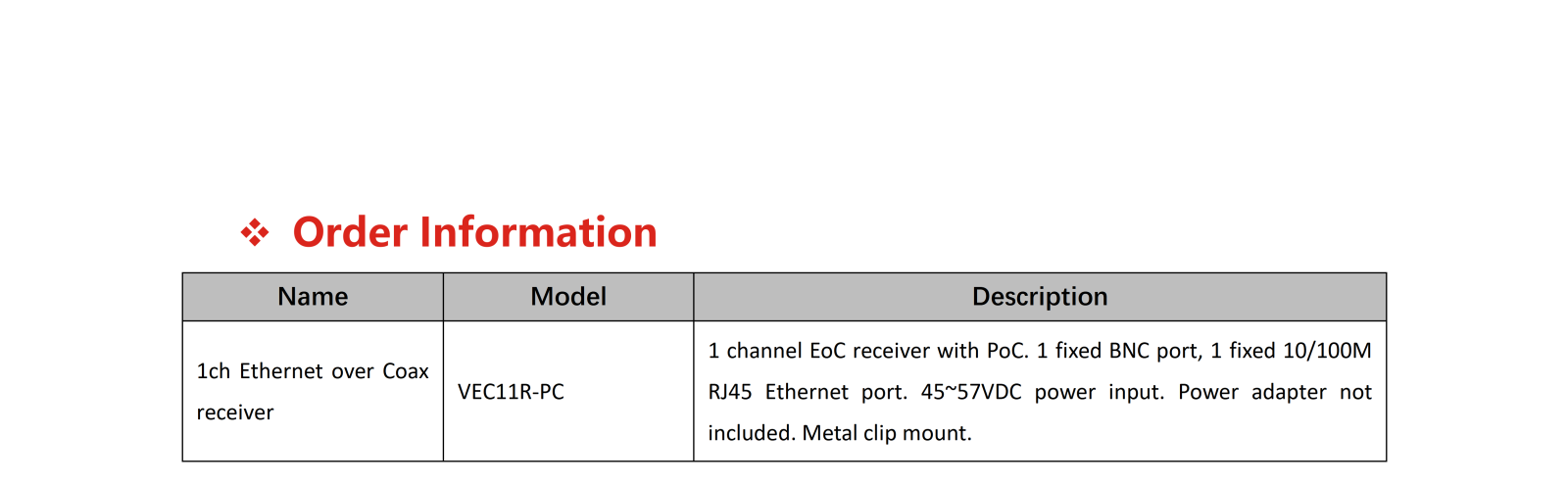

VEC11R-PC
VEC11T-EC

Technical

Model
