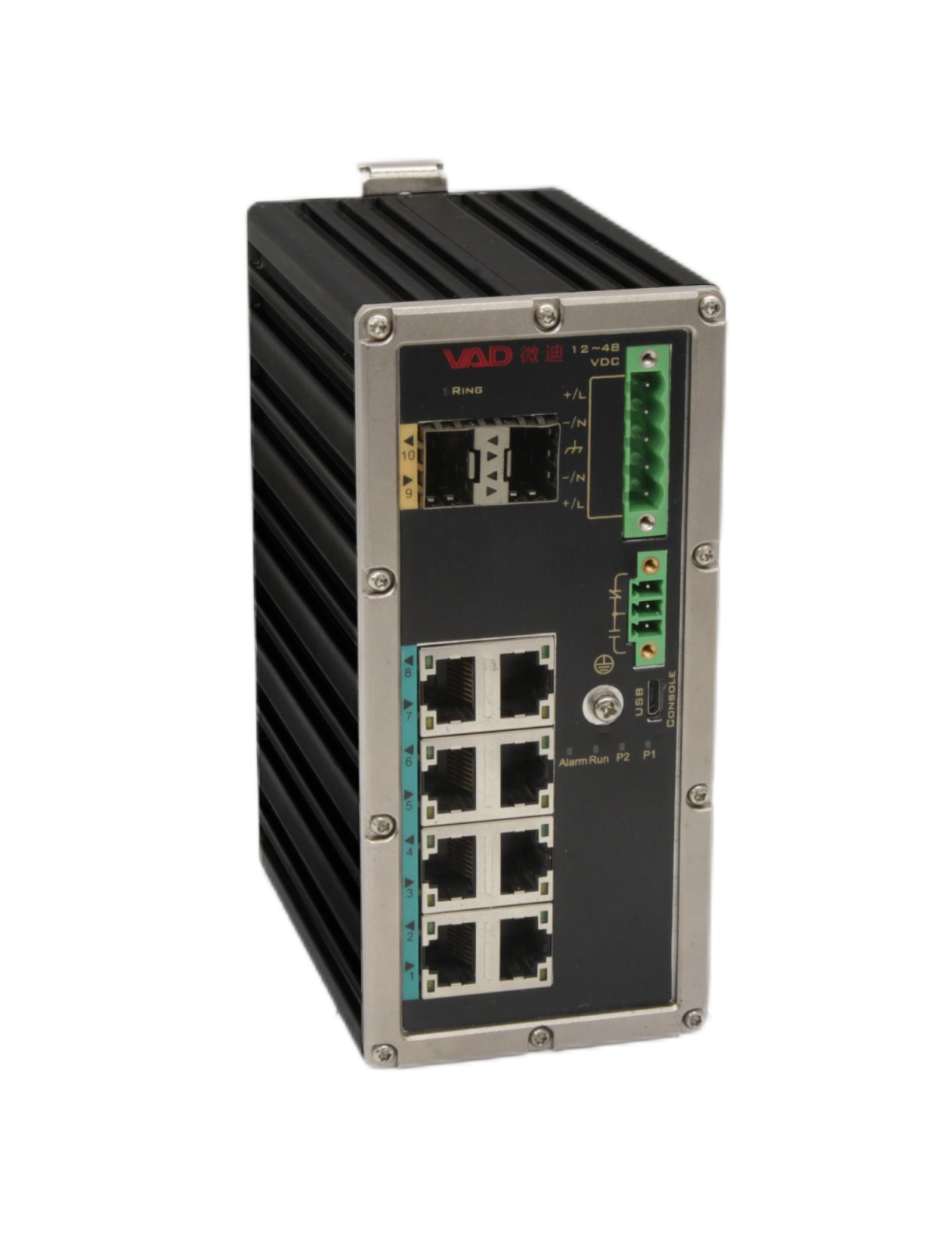

Amber600-8GE2GX-24V

Amber600-8GE2GX-8P-24V managed layer 2 switch is designed for solar power supply . Suitable for automation control, intelligent transportation and harsh industrial environments, the switches guarantee high network availability and environmental adaptability.

Technical

Standards

Standards

IEEE 802.3: 10Base-T

IEEE 802.3u: 100Base-Tx/100Base-Fx

IEEE 802.3z 1000Base-X

IEEE 802.3ab: 1000Base-Tx

IEEE 802.3x: Traffic control

IEEE 802.3ad: LACP

IEEE 802.1Q: VLAN;

IEEE 802.1p: QoS

IEEE 802.1D: STP

IEEE 802.1W: RSTP

IEEE 802.1s: MSTP

IEEE 802.1X: Security of authentication

IEEE 802.1AB: LLDP

Port

RJ45

8*10/100/1000Base-T

SFP

2*1000Base-FX SFP

Control port

Micro USB 2.0 connector,115200bps,8,N,1

Alarm

Relay output fault alarm

Switch properties

Backplane bandwidth

20Gbps

Exchange delay

7μS

Priority queue

8

Max.No. of VLAN

4096

VLAN ID range

1 to 4096

MAC table size

8K

Packet buffer size

4M

Ethernet software features

Filter

802.1Q VLAN、GVRP、GMRP、MVR、IGMPv1/v2

Redundancy technology

ERPS、STP、RSTP、MSTP

Safety characteristics

Enable/disable ports, port based network connection control (802.1x),Through VLAN (802.1Q) network isolation,,RADIUS security authentication,SNMP V1/V2c/V3 encryption verification and access control,SSH

Time management

Syslog;NTP Server/Client

Quality of service

802.1P

Device management

Indicator lights

Power1、Power2、RUN、ALARM

Management mode

IPv4/IPv6、SNMP V1/V2/V3、LLDP、RMON、DHCP、Server/Client、TFTP、HTTP、HTTPS、Telnet

Power

Input voltage range

Solar input,9 to 36VDC,5-pin

Power consumption

<10W, PoE port<30W

Overload current protection

Supported

Reverse polarity protection

Supported

Environment

Storage temperature

-40 to +85℃

Operating temperature

-40 to +75℃

Operating humidity

5% to 95% no-condensing

Physical specification

Housing

Metal

Ingress protection rating

IP40

Dimensions(W x D x H)

68 x 105 x 146mm

Weight

0.6KG

Mounting options

DIN rail mounting or wall mounting


Model

Ordering Information

Amber600-8GE2GX-8P-24V

DIN rail type managed 10-ports Solar PoE industrial Ethernet switch, eight 1G PoE ports, two 1G SFP, SFP slot
