Amber200-8GE2GX-4PB - VAD industrial communication Technologies Co., Ltd

Introduction

Technical

Model

Amber200-8GE2GX-4PB

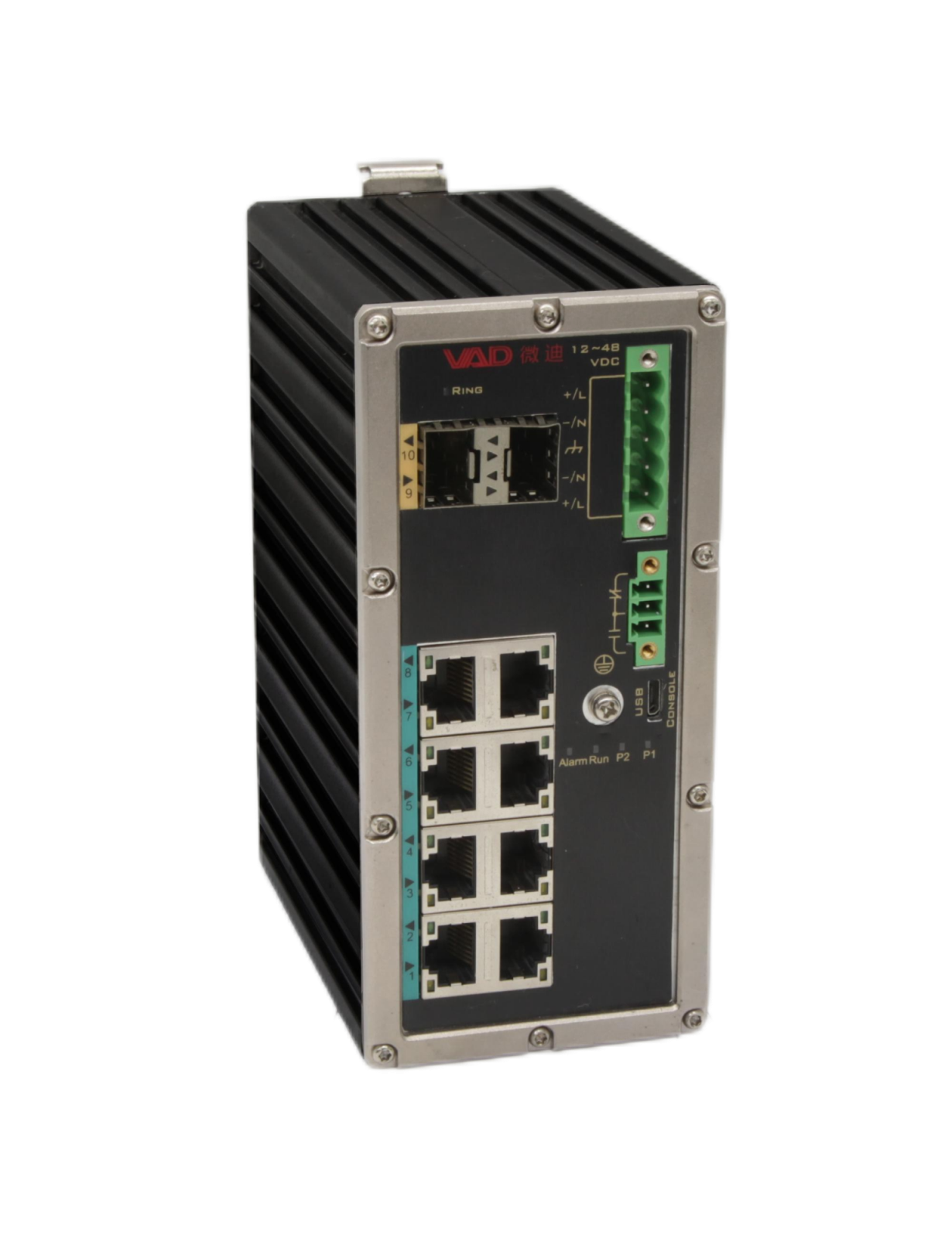

Amber200-8GE2GX-4PB unmanaged PoE switch is rugged for hardened industrial applications. Suitable for automation control, intelligent transportation and harsh industrial environments, the switches guarantee high network availability and environmental adaptability.

Amber600-8GE2GX-24V

Technical

Standards
Standards	IEEE 802.3: 10Base-T IEEE 802.3u: 100Base-Tx/100Base-Fx IEEE 802.3z 1000Base-X IEEE 802.3ab: 1000Base-Tx IEEE 802.3af/at/bt:PoE IEEE 802.3x: Traffic control
Port
RJ45	8*10/100/1000Base-T
SFP	2*100Base-FX SFP
Switch properties
Backplane bandwidth	20Gbps
Exchange delay	7μS
Priority queue	4
MAC table size	1K
Packet buffer size	512K
Power
Input voltage range	Dual DC input，52to 57VDC，5-pin
Power consumption	Without PoE＜10W, with PoE<90W
Maximum power supply	500W
Overload current protection	Supported
Reverse polarity protection	Supported
Environment
Storage temperature	-40 to +85℃
Operating temperature	-40 to +75℃
Operating humidity	5% to 95% no-condensing
Physical specification
Housing	Metal
Ingress protection rating	IP40
Dimensions(W x D x H)	68 x 120 x 146mm
Weight	0.6KG
Mounting options	DIN rail mounting or wall mounting

Model

Ordering Information

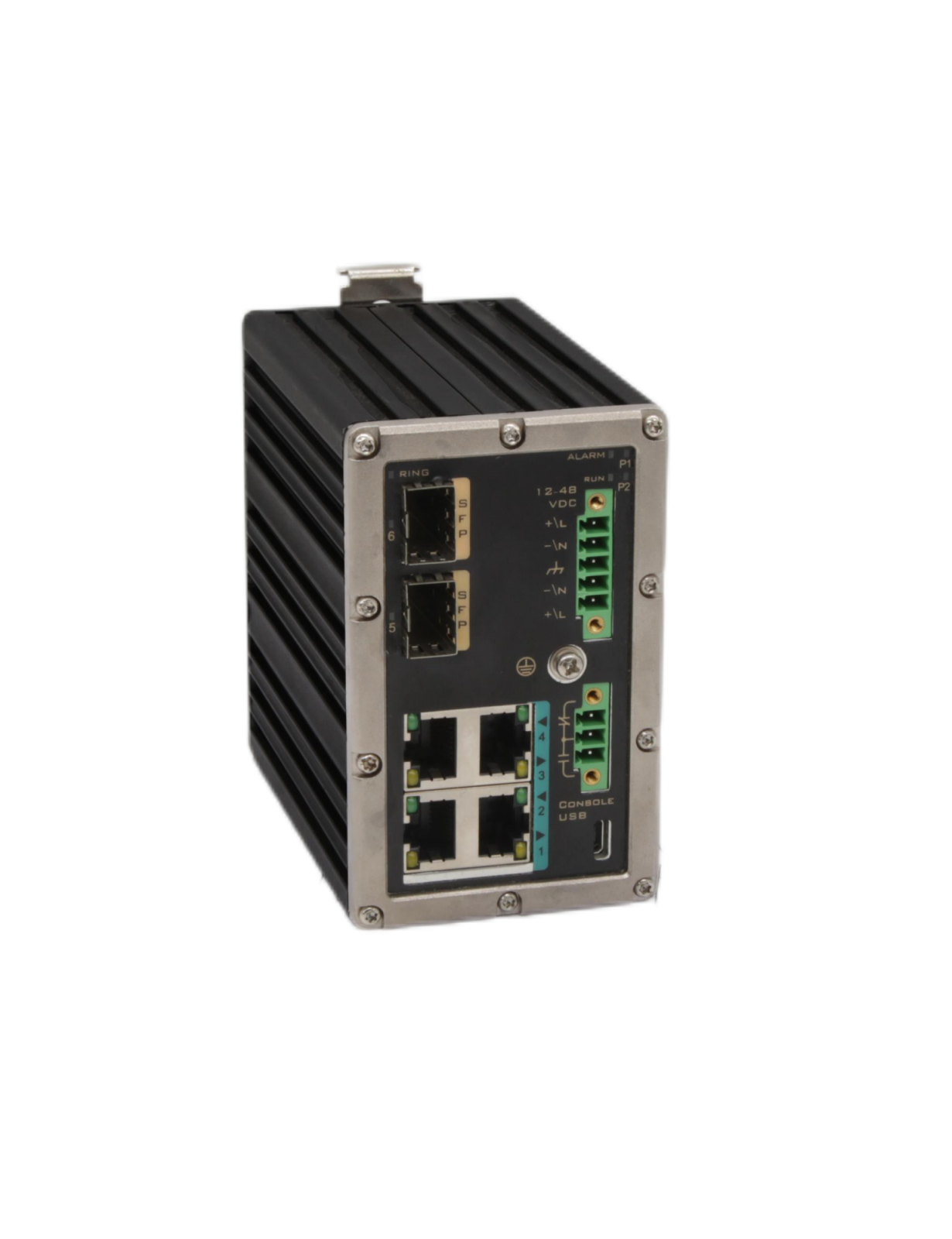

Amber200-4GE2GX-4PB	DIN rail type managed 6-ports PoE industrial l Ethernet switch, four 10/100/1000M PoE ports, two 1G SFP
