Standards

IEEE 802.3: 10Base-T

IEEE 802.3u: 100Base-Tx/100Base-Fx

IEEE 802.3x: Traffic control

IEEE 802.3ad: LACP

IEEE 802.1Q: VLAN;

IEEE 802.1p: QoS

IEEE 802.1D: STP

IEEE 802.1W: RSTP

IEEE 802.1s: MSTP

IEEE 802.1X: Security of authentication

IEEE 802.1AB: LLDP

Port

RJ45

24*10/100/1000Base-T

SFP

4*10/100/1000Base-T

Control port

USB Type-B,115200bps,8,N,1

Alarm

Relay output fault alarm

Switch properties

Backplane bandwidth

208Gbps

Packet forwarding rate

95.23Mpps

Exchange delay

7μS

Priority queue

8

Max.No. of VLAN

4096

VLAN ID range

1 to 4096

MAC table size

32K

Packet buffer size

4M

Ethernet software features

Filter

802.1Q VLAN、GVRP、GMRP、MVR、IGMPv1/v2

Redundancy technology

ERPS、STP、RSTP、MSTP

Safety characteristics

Enable/disable ports, port based network connection control (802.1x)，Through VLAN (802.1Q) network isolation,，RADIUS security authentication，SNMP V1/V2c/V3 encryption verification and access control，SSH

Time management

Syslog；NTP Server/Client

Quality of service

802.1P

Device management

Indicator lights

Power1、Power2、RUN、ALARM

Management mode

IPv4/IPv6、SNMP V1/V2/V3、LLDP、RMON、DHCP、Server/Client、TFTP、HTTP、HTTPS、Telnet

Power

Input voltage range

100 to 240VAC

Power consumption

＜30W

Overload current protection

Supported

Reverse polarity protection

Supported

Environment

Storage temperature

-40 to +85℃

Operating temperature

-40 to +75℃

Operating humidity

5% to 95% no-condensing

Physical specification

Housing

Metal

Ingress protection rating

IP40

Dimensions(W x D x H)

445 x 335 x 44mm

Weight

5.8KG

Mounting options

Rack mounting

Amber600-24GE4TX-U

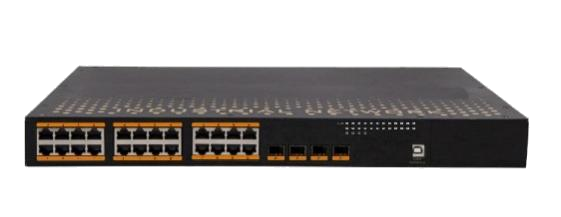

Rack mounting type managed 28-ports industrial Ethernet switch, twenty-four 10/100/1000M Base T,four 10G SFP

Amber600-24GX4GC-U

Rack mounting type managed 28-ports industrial Ethernet switch,twenty-four 1G SFP,four Combo ports

Amber600-24GE4GX-U

Rack mounting type managed 28-ports industrial Ethernet switch, twenty-four 10/100/1000M Base T,four 1G SFP

Amber600-24GE2GX-U

Rack mounting type managed 26-ports industrial Ethernet switch, twenty-four 10/100/1000M Base T,two 1G SFP

Amber600-20FE2GX4GC-U

Rack mounting type managed 26-ports industrial Ethernet switch, twenty 10/100/1000M Base T,two 1G SFP,four Combo ports
