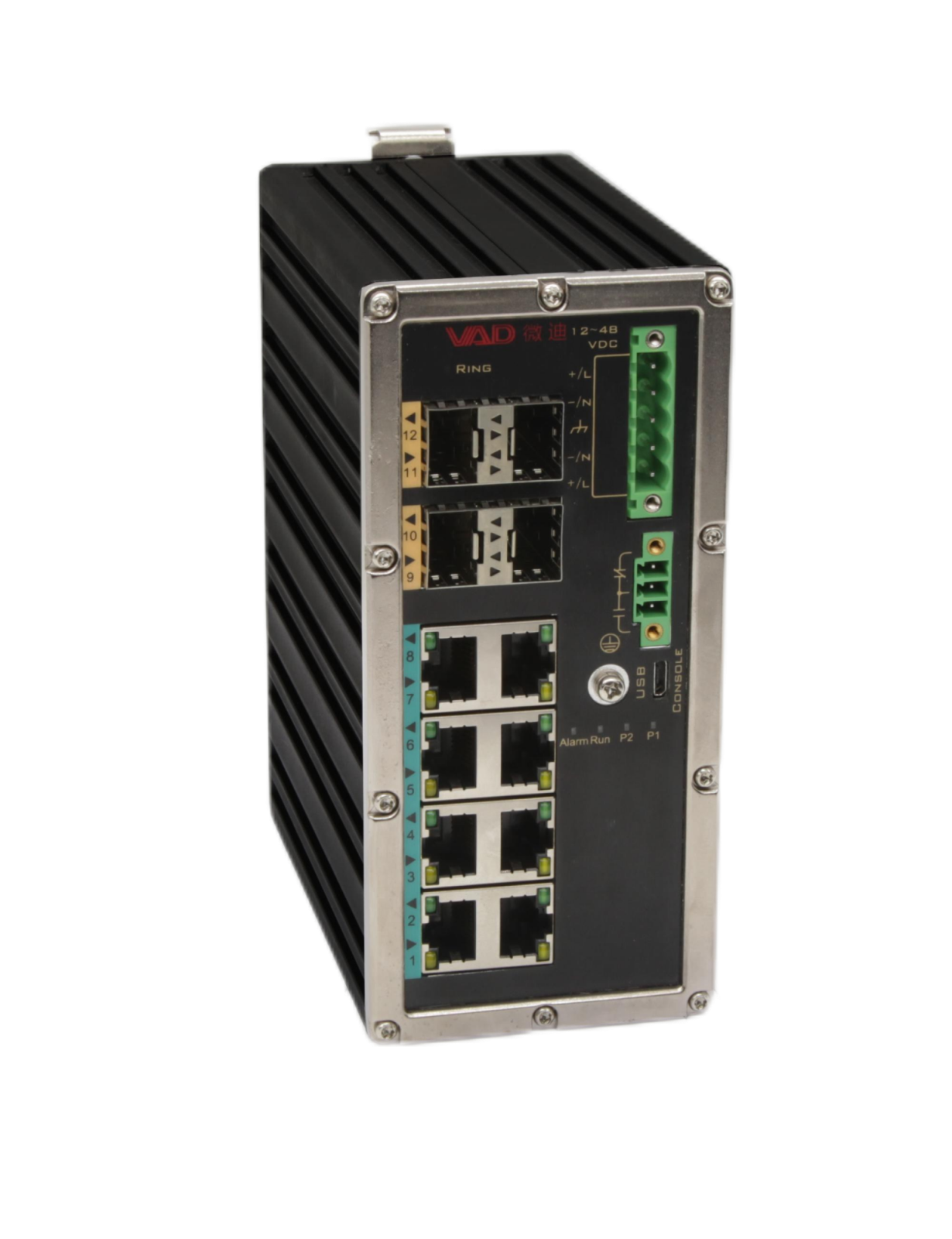

Amber600-8GE4GX

Amber600-8GE4GX managed layer 2 switch is rugged for hardened industrial applications. Suitable for automation control, intelligent transportation and harsh industrial environments, the switches guarantee high network availability and environmental adaptability.

Technical

Standards

Standards

IEEE 802.3: 10Base-T

IEEE 802.3u: 100Base-Tx/100Base-Fx

IEEE 802.3x: Traffic control

IEEE 802.3ad: LACP

IEEE 802.1Q: VLAN;

IEEE 802.1p: QoS

IEEE 802.1D: STP

IEEE 802.1W: RSTP

IEEE 802.1s: MSTP

IEEE 802.1X: Security of authentication

IEEE 802.1AB: LLDP

Port

RJ45

8*10/100Base-T

SFP

4*100Base-FX SFP

Control port

Micro USB 2.0 connector,115200bps,8,N,1

Alarm

Relay output fault alarm

Switch properties

Backplane bandwidth

24Gbps

Exchange delay

7μS

Priority queue

8

Max.No. of VLAN

4096

VLAN ID range

1 to 4096

MAC table size

8K

Packet buffer size

4M

Ethernet software features

Filter

802.1Q VLAN、GVRP、GMRP、MVR、IGMPv1/v2

Redundancy technology

ERPS、STP、RSTP、MSTP

Safety characteristics

Enable/disable ports, port based network connection control (802.1x),Through VLAN (802.1Q) network isolation,,RADIUS security authentication,SNMP V1/V2c/V3 encryption verification and access control,SSH

Time management

Syslog;NTP Server/Client

Quality of service

802.1P

Device management

Indicator lights

Power1、Power2、RUN、ALARM

Management mode

IPv4/IPv6、SNMP V1/V2/V3、LLDP、RMON、DHCP、Server/Client、TFTP、HTTP、HTTPS、Telnet

Power

Input voltage range

Dual DC input,12 to 57VDC,5-pin

Power consumption

<10W

Overload current protection

Supported

Reverse polarity protection

Supported

Environment

Storage temperature

-40 to +85℃

Operating temperature

-40 to +75℃

Operating humidity

5% to 95% no-condensing

Physical specification

Housing

Metal

Ingress protection rating

IP40

Dimensions(W x D x H)

68 x 120.5 x 146mm

Weight

1KG

Mounting options

DIN rail mounting or wall mounting


Model

Ordering Information

Amber600-8GE

DIN rail type managed 8-ports industrial Ethernet switch, eight 10/100 /1000M Base T

Amber600-8FE

DIN rail type managed 8-ports industrial Ethernet switch, eight 10/100M  Base T ports

Amber600-8GE2GX

DIN rail type managed 10-ports  industrial Ethernet switch, eight 10/100 /1000M Base T ports, two 1G SFP

Amber600-8FE2GX

DIN rail type managed 10-ports industrial Ethernet switch, eight 10/100 M Base T ports, two 1G SFP

Amber600-8FE2FX

DIN rail type managed 10-ports  industrial Ethernet switch, eight 10/100 M Base T ports, two 100M SFP

Amber600-8FE4GX

DIN rail type managed 12-ports industrial Ethernet switch, eight 10/100 M Base T ports, four 1G SFP

Amber600-8GE4GX-8P

DIN rail type managed 12-ports  industrial Ethernet switch, eight 10/100/1000 M PoE+Base T ports, four 1G SFP
