Standards

IEEE 802.3: 10Base-T

IEEE 802.3u: 100Base-Tx/100Base-Fx

IEEE 802.3z: 1000Base-X

IEEE 802.3ad: 1000Base-Tx

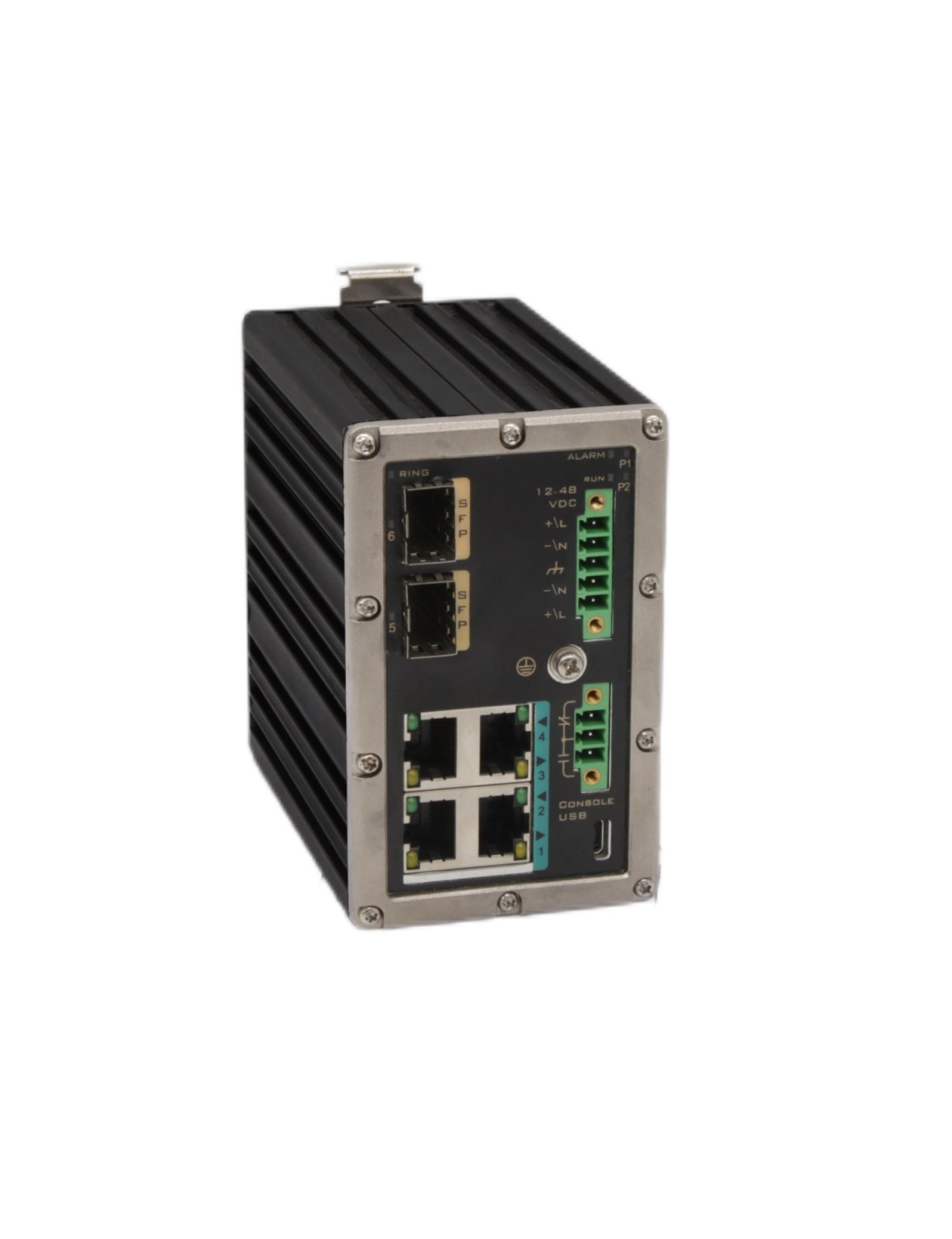

Port

RJ45

4*10/100/1000Base-T

SFP

2*1000Base-FX SFP

Switch properties

Backplane bandwidth

12Gbps

Exchange delay

7μS

Priority queue

4

MAC table size

1K

Packet buffer size

512K

Device management

Indicator lights

Power1、Power2

Power

Input voltage range

Dual DC input，12 to 48VDC，5-pin

Power consumption

＜5W

Overload current protection

Supported

Reverse polarity protection

Supported

Environment

Storage temperature

-40 to +85℃

Operating temperature

-40 to +75℃

Operating humidity

5% to 95% no-condensing

Physical specification

Housing

Metal

Ingress protection rating

IP40

Dimensions(W x D x H)

68 x 87 x 100mm

Weight

0.6KG

Mounting options

DIN rail mounting or wall mounting

Amber200-4FE

DIN rail type unmanaged 4-ports industrial Ethernet switch, four 10/100M Base T

Amber200-4GE

DIN rail type unmanaged 4-ports industrial Ethernet switch, four 10/100/1000M Base T

Amber200-5FE

DIN rail type unmanaged 5-ports industrial Ethernet switch, five 10/100M Base T

Amber200-5GE

DIN rail type unmanaged 5-ports industrial Ethernet switch, five 10/100/1000M Base T

Amber200-4FE1FX

DIN rail type unmanaged 5-ports industrial Ethernet switch, four 10/100M Base T, one 100M SFP

Amber200-4FE1GX

DIN rail type unmanaged 5-ports 1industrial Ethernet switch, four 10/100M Base T, one 1G SFP

Amber200-4GE1GX

DIN rail type unmanaged 5-ports industrial Ethernet switch, four 10/100/1000M Base T, one 1G SFP

Amber200-4FE

DIN rail type unmanaged 6-ports industrial Ethernet switch, four 10/100M Base T, two 100M SFP
