VDS511S-SML-T/R

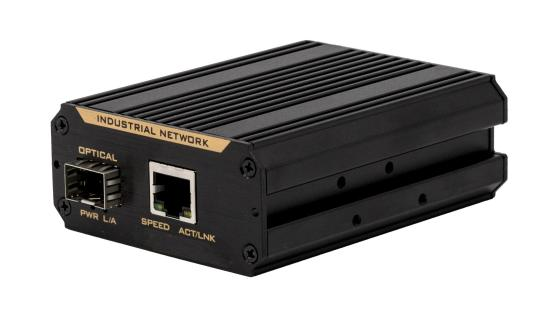

VDS511-SMF-T/R is a single port industrial 100M optical transceiver developed and produced by VAD, which can be widely used in Telecom operators, Radio and Television operators data network, can be used in oil, railway, transportation and other harsh application scenarios, and can also be used in government, finance, education and other industry private networks.

The equipment adopts industrial design, MTBF≥300000h, meets IP40 protection level, anti-static, multi-layer circuit board supports good electromagnetic compatibility, independent form, single mode, single fiber bidirectional FC optical port, provides a 10/100M adaptive Ethernet electrical port, the transmission distance is 20KM.
